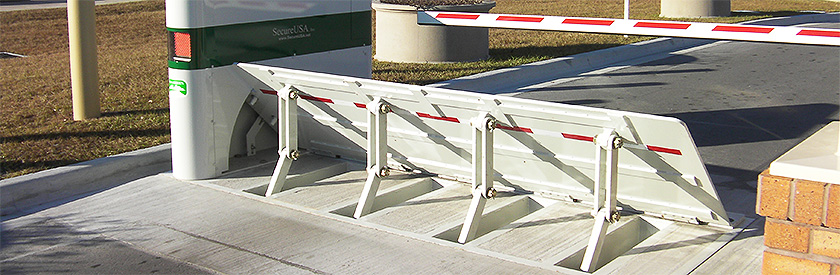

FutureWEDGE® 3100 – All Electric Active Vehicle Barrier
An all electric active vehicle barrier available in single or dual buttress design installed with a shallow foundation (9″) or simply bolted down on a suitable road surface.
The FutureWEDGE® 3100 vehicle barrier features a motor and control design that provides greater utilization of the incoming power supply and improves efficiency. Any electric current can be used to power the barrier. High duty cycles for traffic control and lower maintenance costs are features of this barrier. Our product can qualify for up to 6 LEED points. It is standard with LED stop/go lights and can be ordered with a fully integrated gate arm assembly.
Ports of Entry
Bridges and Tunnels
Super Shallow Foundation
Battery Backup/UPS Available
Optional Integrated Gate Arm
Single or Dual Buttress
SkidKOTE Surface option
Surface Mount, Bolt Down Model
Lower Cost Installation
High Traffic Capabilities
Integrated LED Safety Lights
Made for Integration
Extensive Model Range
Master Control Capability
Variety of Models
|Model #||Foundation||Plate Height||Road Width||Crash Rating|
|SHS3108-4||9” (229mm)||31” (790mm)||10’ (3.05m)||15,000 lbs. @ 30 mph (K4/M30) 6,804 kg @ 48.3 kph|
|SHS3110-4||9” (229mm)||31” (790mm)||12’ (3.66m)||15,000 lbs. @ 30 mph (K4/M30) 6,804 kg @ 48.3 kph|
|SHS3112-4||9” (229mm)||31” (790mm)||14’ (4.3m)||15,000 lbs. @ 30 mph (K4/M30) 6,804 kg @ 48.3 kph|
|SMD3116-4 (Dual Buttress)||0”||31” (790mm)||16’ (4.88m)||10,000 lbs. @ 30 mph, 4,535 kg @ 48.3 kph|
|SHS3110-8||12” (305mm)||31” (790mm)||12’ (3.66m)||15,000 lbs. @ 40 mph (K8/M40) 6,804 kg @ 64.4 kph|
|SHS3112-8||12” (305mm)||31” (790mm)||14’ (4.3m)||15,000 lbs. @ 40 mph (K8/M40) 6,804 kg @ 64.4 kph|
|SHD3114-12 (Dual Buttress)||12” (305mm)||31” (790mm)||14’ (4.3m)||15,000 lbs. @ 50 mph (K12/M50) 6,804 kg @ 80.5 kph|
All Electric Operation
The FutureWEDGE® 3100 range is precision designed with no hydraulics or associated hazardous fluids. Being all electric, we eliminate breakdowns associated with traditional hydraulic systems and common wearing components such as hoses, cylinders, HPU, etc. The electro-mechanical drive features smooth, quiet, trouble-free operation.
Built for Integration
The FutureWEDGE® 3100 utilizes industry leading PLC and VFD drives to allow for customized operation and communication with available touchscreen technology. The PLC also allows the barrier to be easily integrated with other perimeter security systems such as speed detection, access controls, traffic loops, automatic doors, CCTV, gates, and other intrusion devices.
LEEDs Environmentally Preferable
With the all electric design, low emitting materials, qualified manufacturing points and environmental sustainability, the FutureWEDGE® 3100 can contribute toward as many as six LEED categories.
The FutureWEDGE® 3100 electric vehicle barrier is available in a single or dual buttress design, with a bolt down or shallow foundation installation, depending on the crash rating requirement. The 3100 is crash rated for all three ASTM-M and DOS-K levels. Typical foundation depth for an anchor frame installation is from 8 – 12 inches (203 – 305 mm). Single entrances up to 16 feet (4.9m) in width can be secured with the 3100 series. This model is standard with LED stop/go lights and can be supplied with a fully integrated gate arm assembly. It is integration ready!
