FutureWEDGE® RAC – Vehicle Barrier of Choice for Auto Loss Prevention

TheFutureWEDGE® RAC active vehicle barrier is the industry-leading choice for auto loss prevention, car parking garages, stadiums, and courthouses. It is an easy to install, surface-mounted, all electric vehicle barrier providing complete traffic control that can be integrated with any other access control system.

Vehicle Barrier

The FutureWEDGE® RAC vehicle barrier is an all electric, surface-mounted, active barrier that features easy setup and installation. The barrier controls and EPU are all self contained within the barrier buttress making the FutureWEDGE® RAC a true “plug and activate” vehicle access control system. The FutureWEDGE® RAC barrier is designed to stop and immobolize light trucks and passenger vehicles. This innovative vehicle barrier includes an onboard gate arm and signal lights that increases safety and lowers cost.

Applications

Car Rental Facilities
Parking Garages
Municipal Facilities
Stadiums/Centers
Corporate Campuses
Parking Sites
Colleges/Universities
Police/Fire/Emergency

Features

Easy Install – Bolt Down
All Electric Operation
Only Four Moving Parts
Emergency Manual Operation
PLC/VFD Programmable Control
Integrated Gate Arm Option
RustKOTE Anti-Corrosion
Battery Backup/UPS Option

Benefits

One Day Installation
Environmentally Preferable
Lower Cost Maintenance
Integrated LED Safety Lights
Simple Push Button Operation
Multiple Control Options
Longer Poduct Life Cycle
Prevent Down Time

Product Models

Product # Foundation Plate Height Road Width Crash Rating
SMR2408 0″ 24″ (610mm) 11′ (3.35m) ASTM-PU40 ASTM-C40 2,430 lbs @ 40 mph (1,100 kg @ 65 kph)
SMR2410-2 0″ 24″ (610mm) 13′ (3.96m) ASTM-PU40 ASTM-C40 2,430 lbs @ 40 mph (1,100 kg @ 65 kph)
SMR2412-2 0″ 24″ (610mm) 15′ (4.57m) ASTM-PU40 ASTM-C40 2,430 lbs @ 40 mph (1,100 kg @ 65 kph)
rac-vehicle-barrier-midway
Vehicle Barrier
3

All Electric Operation

The FutureWEDGE® RAC vehicle barrier range is precision designed with no hydraulics or associated hazardous fluids. Being all electric, we eliminate breakdowns associated with traditional hydraulics systems and common wearing components such as hoses, cylinders, HPU, etc. The electro-mechanical drive features smooth, quiet, trouble-free operation.

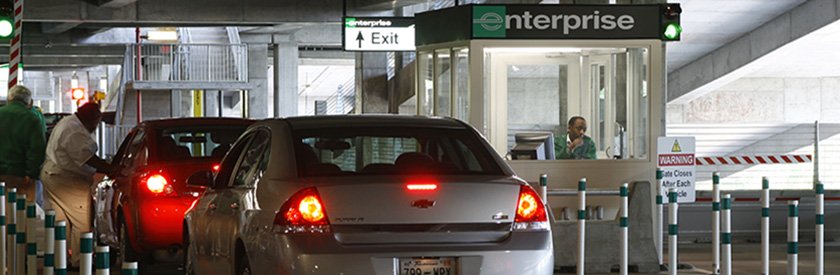

Designed for Car Rental Facilities

This innovative all electric barrier has been designed using the crash tested FutureWEDGE® platform. By modifying this proven product to suit the specific needs of the rental car industry, we have been able to create a robust solution that far exceeds other competitive products in this market space. Biometrics and RFID card readers can be integrated for access control.

LEED Environmentally Preferable

With the pollution free all electric design, low emitting materials, qualified manufacturing points and environmental sustainability, the FutureWEDGE® RAC vehicle barrier can contribute to LEED certification in up to six strategic categories.

Plug & Activate

The FutureWEDGE® RAC vehicle barrier is a self-contained “plug and activate” single buttress bolt down barrier, designed for effective traffic control. It is the ideal solution for car rental sites, parking garages, or for campus access points requiring crash-rated security at a very competitive price. The FutureWEDGE® RAC barrier has a plate height of 24 inches (610 mm) in the fully armed position (considerably higher than other competitive models) and is therefore capable of stopping and immobilizing a 2,430 lb (1,100 kg) vehicle traveling at 40 mph (65 kph) commonly referred to as an ASTM-C40 crash rating. Single entrances up to 15 feet (4.57 m) wide can be secured with this barrier. It is standard with LED stop/go lights and can be ordered with a fully-integrated gate arm assembly.
